Connecting to JMap NG
JMap NG is accessed via a Web browser (Edge, Google Chrome, Firefox, Safari, etc.) using a URL provided by your JMap administrator.
The URL takes the following format: http or https://SERVERADDRESS:PORT/services/ng
where SERVERADDRESS:PORT is the IP address or domain where JMap Server is installed.
Here are two examples:
https://jmap7dev.jmaponline.net/services/ng
This URL uses the JMap Server domain.
http://192.168.0.106:8080/services/ng
This URL uses the IP address and port where JMap Server is installed.

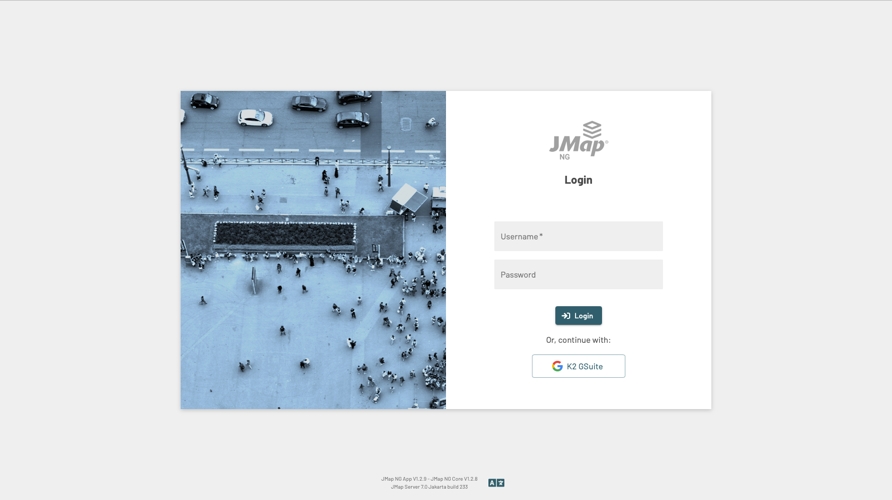

The following image shows JMap NG's login interface.

The login interface and the application itself will be displayed in the language you configured for your web browser.
Click on the
icon located at the bottom of the interface to display the available languages and change the display language of JMap NG.
To the left of the
icon are displayed the version of JMap NG and the version of JMap Server to which the application is connected.
If access to the application is controlled, you must obtain a username and password from your organization to log into it. If your organization uses single sign-on tools, you can use them to log in.

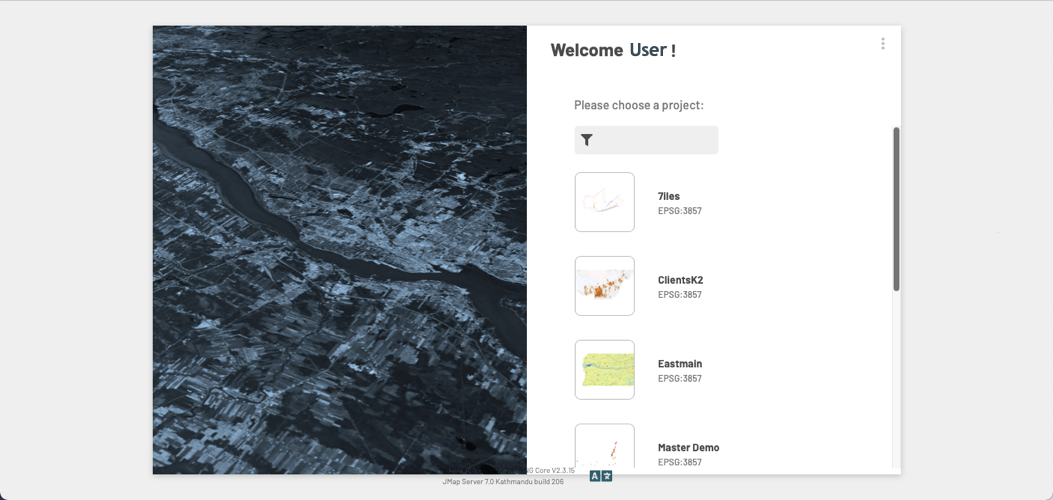

Once you are logged into the application, the following interface allows you to select the project you wish to access. The projects you have permission to access will be displayed.
Use the filter
to more quickly identify the project that interests you.
Click on a project to access it.
Click on
to open the menu providing access to the documentation and allowing you to log out of your JMap NG session.
