Spatial Queries

Spatial queries are used to search for map elements of a layer that meet a spatial criterion.

Several types of spatial criteria are available, but each uses a reference selection as a basis for the search.

Before performing the spatial query, it is essential that you select the reference elements.

Some examples of spatial queries:

• Select properties located at less than 500 meters from the selected park.

• Select route segments located within the selected zoning polygon.

• Select all lots adjacent to the selected river.

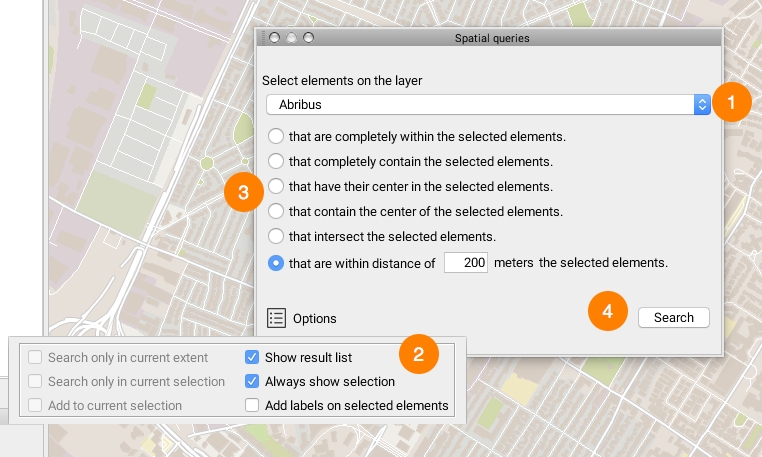

1	Select the information layer on which the search is performed (what you are looking for). The spatial query can only be performed on a selection that has been made beforehand.
2	Press the Options button to display a list of search options. The following options are available: Search only in current extent: The search is performed only on the area that appears on the screen. Search only in current selection: The search is performed only among the elements that are already selected. Add to current selection: The results of the query will be added to the elements on the map that have already been selected. Show result list: Displays the results list in the elements explorer. Always show selection: Displays results, even when these do not fall within the visibility thresholds of the layers that are queried (this is useful when results span a very large territory). Add labels on selected elements: Displays a label on each element that is found (improves visibility of results).
3	Choose the spatial criteria to apply for the query.
4	Press Search to launch the query.

Results are selected on the map. If the Show result list option is selected, the elements explorer displays the elements returned by the query. It is then possible to launch an information report pertaining to the selection (refer to Information Report).
