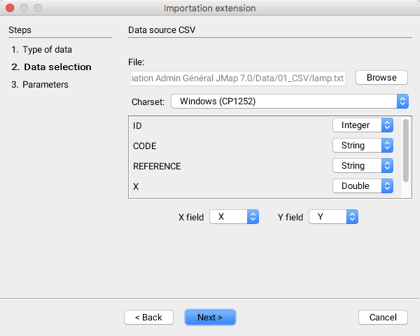

The second step in importing CSV data involves selecting the data set to import and its structure.

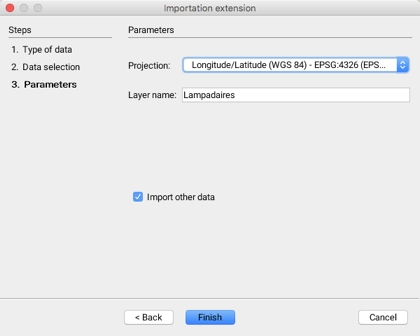

The third step allows you to configure the parameters of the layer that will be generated when the data is imported.
Dernière mise à jour
K2 Geospatial 2024
File
Select the CSV file to import.
Windows (CP1252)
Drop-down menu to select the character set used for the attributes stored in the CSV file. If this parameter is not properly defined, it is possible that some characters will not be properly displayed.
Attributs
Select, for each file attribute, the type of data it contains, either String, Double or Integer.
X field - Y field
Select the attributes of the file corresponding with the x and y coordinates.
Projection
Drop-down menu allowing you to select the data projection. It is possible to select None. The JMap administrator determines which projection systems will be available to the user.
Layer name
The data will be imported into a layer whose name must be specified.
Import other data
It is possible to indicate that other data sets will be imported; this automatically brings you back to the first step.
